200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera
200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera
200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera
200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera
200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera
1 / 5
200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera
200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera
200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera
200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera
200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera

200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Dome Camera
Send Inquiry

Product Description

Basic Information
Model NO.
SVN-HDP9825-Q1
Type
CCTV Camera
Sensor
CMOS
HDMI Format
4096*2160
Kind
Autofocus Lens
Certification
CE, FCC, RoHS
Effective Distance
200m
Optical Zoom
25X
Protection
IP66 Weatherproof
Key Features
✓8.0MP Full Real-time HD with Low Code Stream and High Quality Image
✓25x Optical Zoom with Auto-Focus and High Precision Control
✓3D High Precision Pan/Tilt Position Control
✓Professional Weatherproof IP66 Grade for Outdoor Security
✓Advanced Defog Function and IR distance up to 200 meters
✓Wide Working Temperature Range: -30ºC to +60ºC
Technical Parameters
Lens & Module
Model No.SVN-HDP9825-Q
Optical Zoom25X Optical Zoom
Focus Lengthf5.6~140mm
Image Sensor1/1.7" 12MP CMOS
Max ResolutionDCI-4K (4096x2160), 8.85MP, 24fps
Min. IlluminationColor: 0.2Lux @ F1.6; B/W: 0Lux with IR
Video & Image
CompressionH.265 / H.264 / MJPEG
WDR / BLC / HLCSupport
3D DNRSupport
OSD SettingsMultiple Zone OSD (Date, Time, Scene)
Pan/Tilt & Infrared
Rotation RangeHorizontal: 0°~360° Continuous; Vertical: -15°~90°
Preset Positions255 Presets, 8 Cruise Groups
IR Distance≥200 Meters
IR SyncIR Light and Zoom Synchronously Adjustable
Interface & General
Network Port1*RJ45 10M/100M Adaptive Ethernet
Audio I/O1ch Input / 1ch Output
Power SupplyDC 12V 4A / PoE (Optional), Max 30W
DimensionsΦ237 x H335mm
Product Gallery

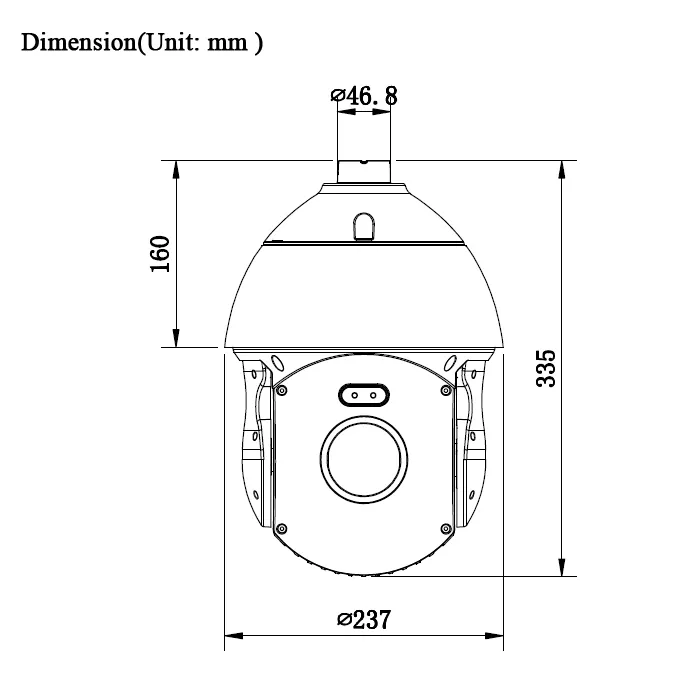

4K PTZ Camera Front View
4K PTZ Camera Side View

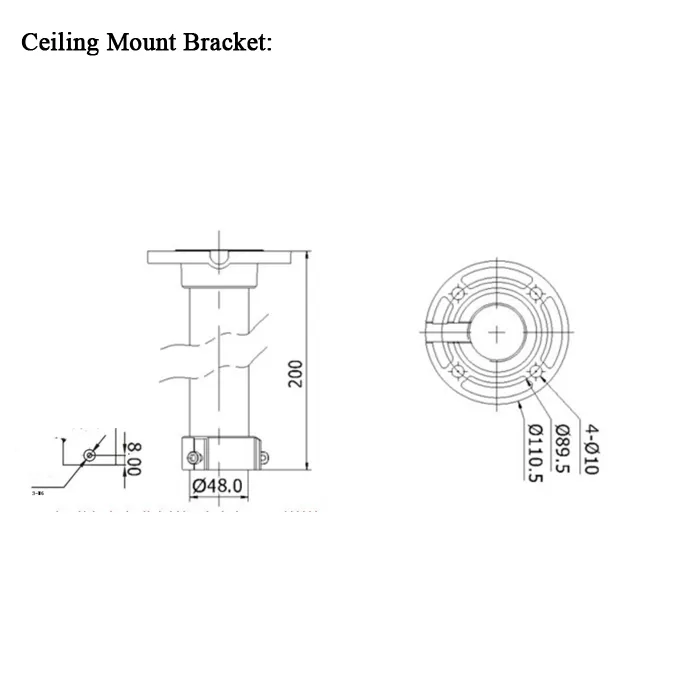

4K PTZ Camera Details
4K PTZ Camera Dimensions and Overview
Frequently Asked Questions
What is the maximum resolution of this PTZ camera?
This camera supports DCI-4K resolution (4096x2160) at 8.85MP, providing ultra-high-definition video quality for professional surveillance.
How far is the night vision range?
The camera is equipped with high-performance Array IR LEDs, offering an effective infrared night vision distance of 200 meters or more.
Can I use this camera outdoors in extreme weather?
Yes, the camera features an IP66 waterproof rating and can operate in temperatures ranging from -30ºC to +60ºC, making it suitable for harsh outdoor environments.
What kind of zoom does it offer?
It features a 25X optical zoom with a focus length of 5.6mm to 140mm, allowing for clear identification of distant objects.
Does the camera support PoE?
The camera supports DC 12V power supply by default, but a PoE (Power over Ethernet) option is available. A high-power PoE switch is required for this function.
Is it compatible with third-party systems?
Yes, the camera is compatible with ONVIF and GB/T 28181 protocols, ensuring seamless integration with various NVRs and management software.
