Basic Information
Model NO.SF-VS1
TypeIP Camera
SensorCMOS
HDMI Format960P
Horizontal Res.650tvl
KindFixed Lens
CertificationCE, FCC, CCC, RoHS, EMI/EMC, ISO9001
FeatureHigh Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance10-30m
Sensor Size1/4 inch
Remote ControlWithout Remote Control
Production Capacity600,000 PCS Per Week
OriginChina
HS Code8521909090
Product Description

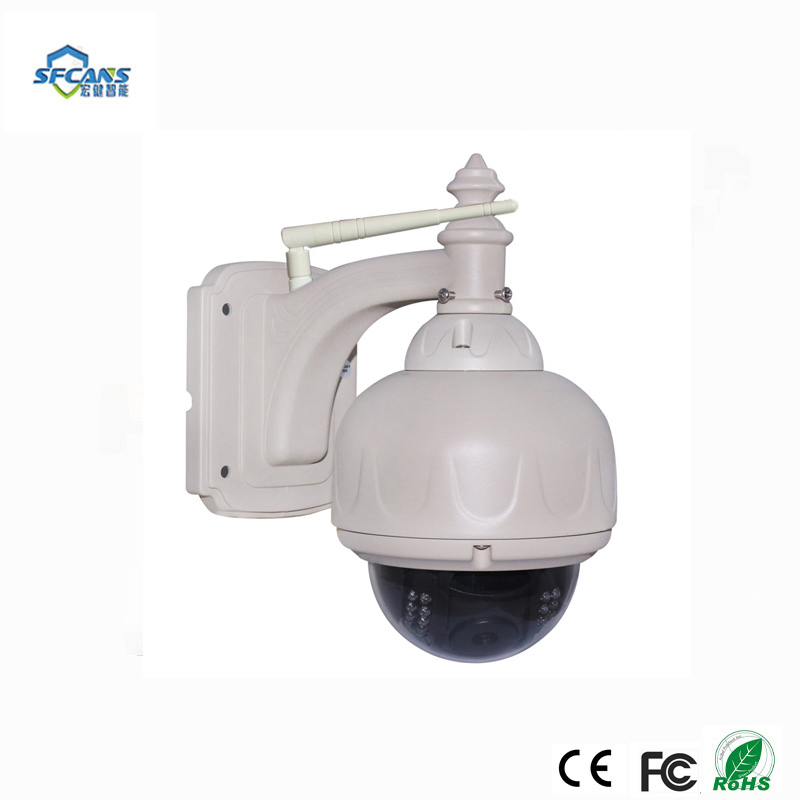

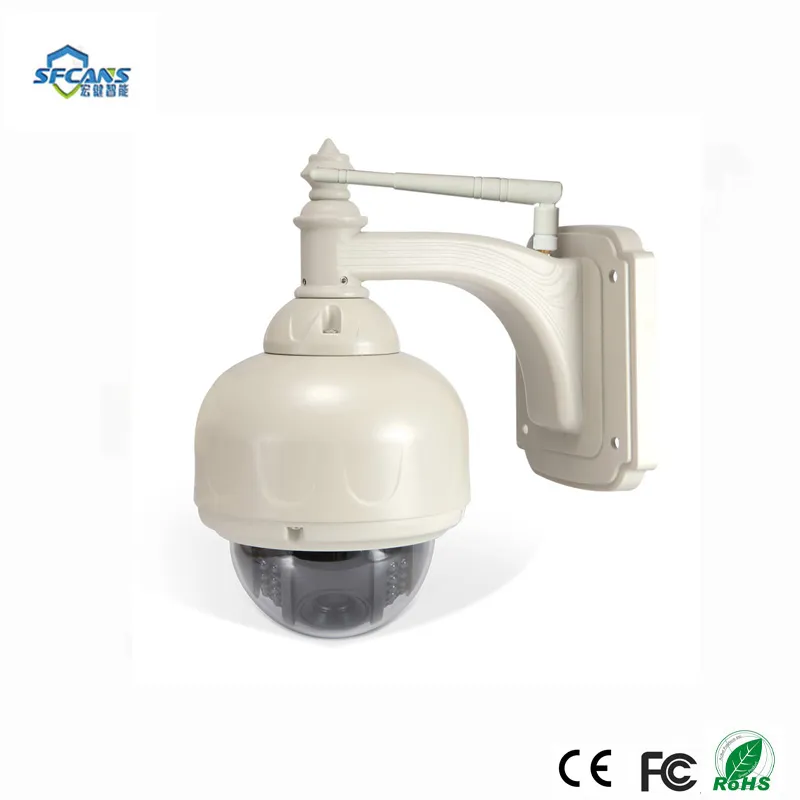

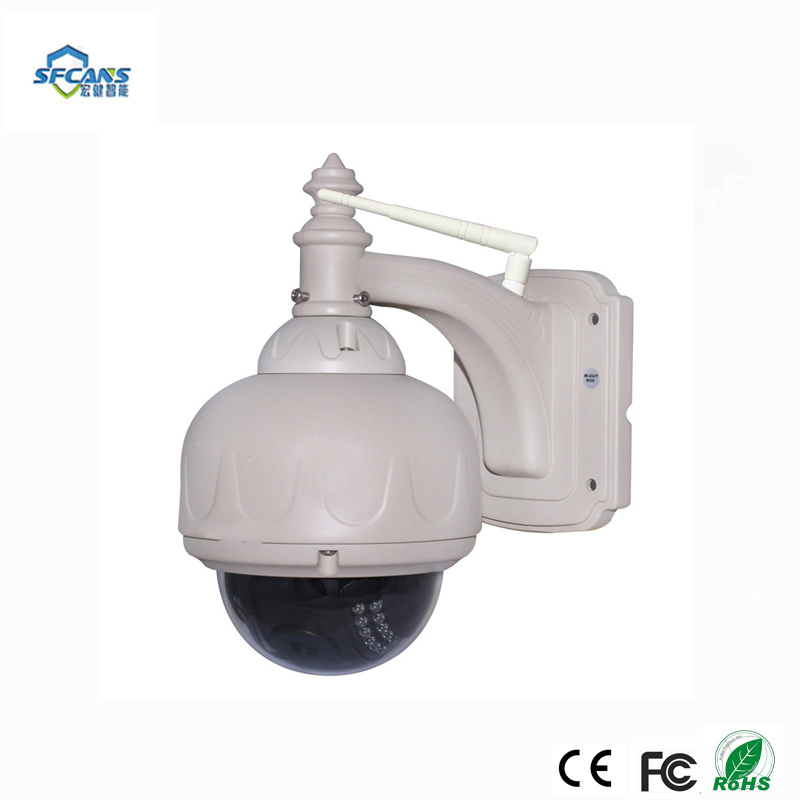

IP Camera WiFi CCTV Video Outdoor Waterproof Security Camera
Main Features:
- CMOS Sensor, DC 5V2A power supply
- 22 LED, IR distance up to 15 Meters

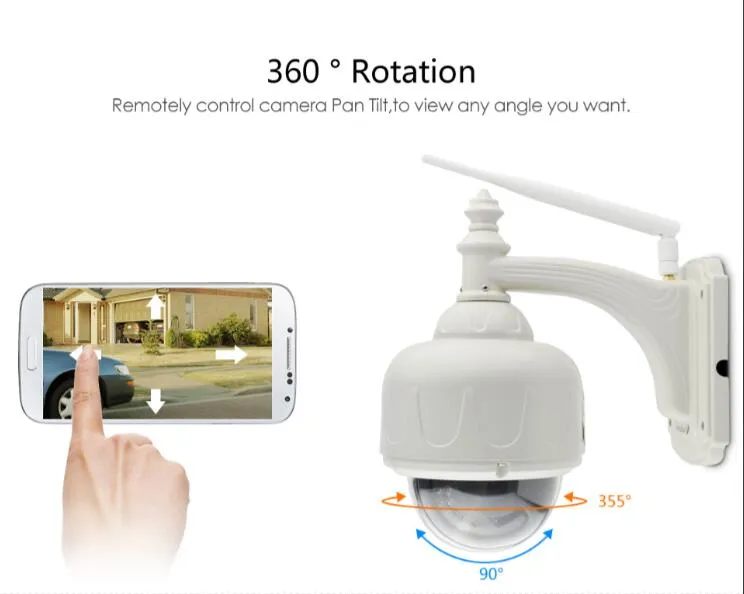

- Pan: 355°, Tilt: 90°, Speed: 15-70°/S
- Wi-Fi/802.11/b/g/n wireless connectivity
- Motion detection, email alerts, FTP upload
- Iphone, 3G phone, Smartphone supported
- Multi-browser: Firefox, Safari, Google browser
- Built-in IR Cut, No Color Cast
- Lens options: Fixed 4mm or Zoom 2.8-12mm
- Standard Onvif protocol support
Technical Parameters
| Category |
Specification Details |
| System |
Security |
Three-level account, password, user authority management |
| OS |
Embedded Linux OS / Processor Hi3518E |
| P2P |
Plug & Play, Support QR code scanning |
| Lens |
Type |
Standard 4 mm lens |
| IR-CUT |
Built-in IR CUT, no color cast, auto switch |
| Video |
Compression |
H.264 / MJPEG |
| Frame Rate |
25fps(50Hz) / 30fps(60Hz) at 1280x720 |
| Streams |
720P (First Stream), VGA (Second Stream) |
| Night Vision |
Illumination |
0 LUX |
| Visibility |
22 IR LEDs, up to 15 meters |
| Network |
Wireless |
WIFI, 802.11b/g/n |
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc. |
Service & Support
Ordering Process
1. Confirm model numbers and quantities. 2. Proforma Invoice issuance. 3. Production starts after payment confirmation. 4. Shipping via DHL/UPS/Fedex/Sea with tracking provided.
MOQ & Lead Time
MOQ: No limit for the first order; 10pcs thereafter.
Lead Time: Samples (2 days), General orders (3-7 days), Bulk orders (7-15 days).
OEM/ODM & Warranty
Custom logo printing available for orders over 100pcs. We provide a limited 2-year warranty for cameras and DVRs.
Frequently Asked Questions
What is the night vision range of the SF-VS1?
The camera is equipped with 22 IR LEDs, providing clear night visibility for distances up to 15 meters.
Can I monitor the camera on my smartphone?
Yes, it supports remote monitoring via iPhone and Android smartphones using the dedicated application.
Does this camera support the ONVIF protocol?
Yes, it supports the standard ONVIF protocol, allowing for easy integration with other security systems.
What are the Pan and Tilt capabilities?
The camera features a 355° Pan and 90° Tilt, with adjustable rotation speeds ranging from 5° to 70° per second.
What is the warranty period for this product?
We offer a limited 2-year warranty from the date of shipment. Defective products under normal use will be repaired or replaced.
How does the motion detection alert work?
The system supports 4 independent detection areas. When motion is detected, it can trigger email photo alerts and upload snapshots/records to an FTP server.
