Basic Specifications
Model NO.
UV-ZN2133
Type
CCTV Camera
Sensor
1/2.8 Inch CMOS
Resolution
2MP (1080P)
Lens Type
Autofocus (4.8-158mm)
Zoom
33x Optical Zoom
Certification
CE
Distance
≧30m
Product Key Features
- Max Resolution: 2MP (1920×1080) @ 30fps Live Image
- Supports H.265/H.264/MJPEG Compression
- Starlight Low Illumination: 0.001Lux (Color), 0.0005Lux (B/W)
- 33x Optical Zoom & 16x Digital Zoom
- Smart Detection: Intrusion, Cross-border, and Movement Detection
- 3-stream Technology with Independent Configuration
- ICR Automatic Switching for 24-hour Monitoring
- 120dB Optical Wide Dynamics & 3D Noise Reduction
- Supports 255 Presets and 8 Patrols
- One-click Watch and Cruise Functions
- Built-in Alarm and Audio Input/Output
- Storage: 256G Micro SD / SDHC / SDXC Support
- ONVIF Protocol (Profile S, Profile G) Compatible
Technical Specifications
| Parameter |
Details |
| Camera |
Image Sensor |
1/2.8" Progressive Scan CMOS |
| Min Illumination |
Color:0.001 Lux; B/W:0.0005Lux @ (F1.5,AGC ON) |
| Shutter Speed |
1/25s to 1/100,000s |
| Day/Night Switch |
ICR Cut Filter |
| Lens |
Focal Length |
4.7-155mm, 33x Optical Zoom |
| Aperture Range |
F1.5-F4.0 |
| Field of View |
60.5-2.3° (Wide-Tele) |
| Smart |
Detection |
Cross-border, Intrusion, Entering/Leaving, Fast motion, Face detection |
| Protocols |
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, ONVIF |
| General |
Working Temp |
-30ºC~60ºC, Humidity ≤95% |
| Power Supply |
DC12V±25% (2.5W - 4.5W Max) |

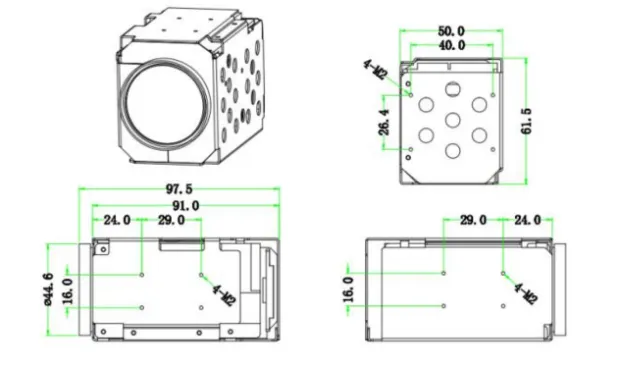

| Dimensions |
97.5x61.5x50mm, Weight: 268g |
Frequently Asked Questions
What is the optical zoom capability of the UV-ZN2133?
The camera features a powerful 33x optical zoom with a focal length ranging from 4.7mm to 155mm, supplemented by a 16x digital zoom.
Does this camera perform well in low-light conditions?
Yes, it uses Starlight technology, allowing for clear color images at 0.001 Lux and black-and-white images at 0.0005 Lux.
What smart features are included for security?
The UV-ZN2133 supports advanced smart detection such as area intrusion, cross-border detection, movement detection, and even face detection.
What are the storage options for recorded video?
It supports local storage via Micro SD/SDHC/SDXC cards up to 256GB, as well as network storage options like NAS (NFS, SMB/CIFS).
Is the camera compatible with third-party software?
Yes, it supports ONVIF (Profile S and Profile G), ensuring high compatibility with various network video recorders and management systems.
What is the operating temperature range?
The camera is designed to operate in extreme environments ranging from -30ºC to 60ºC with humidity up to 95%.
