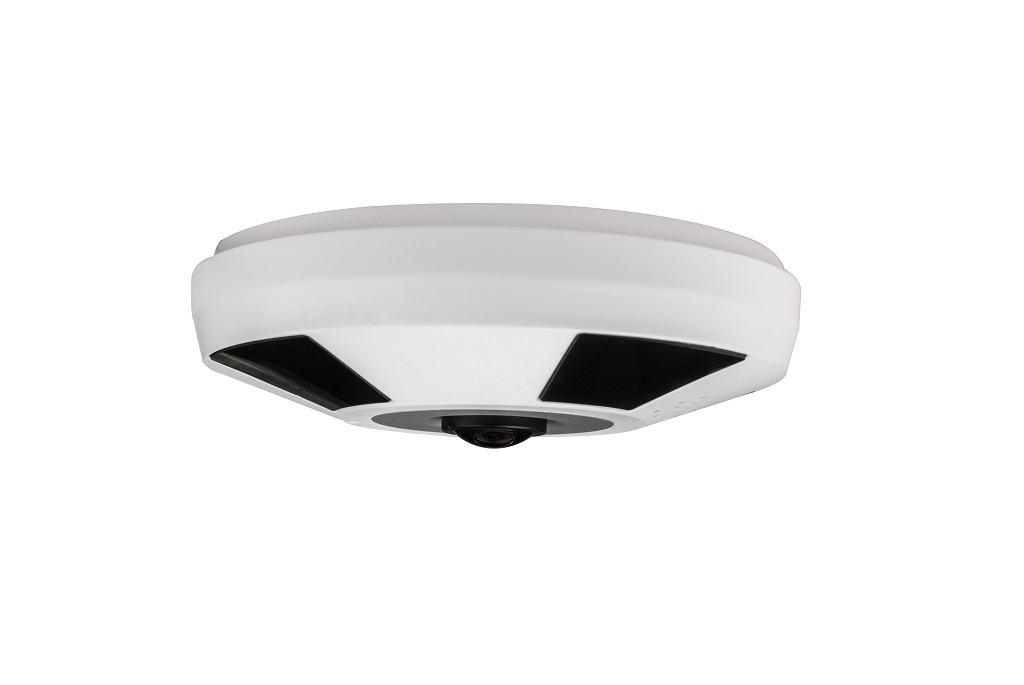

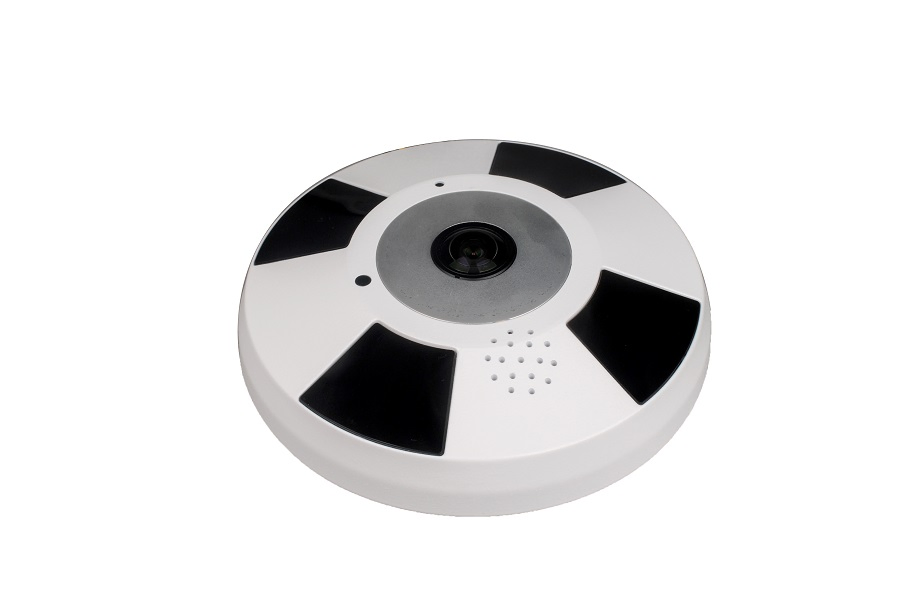

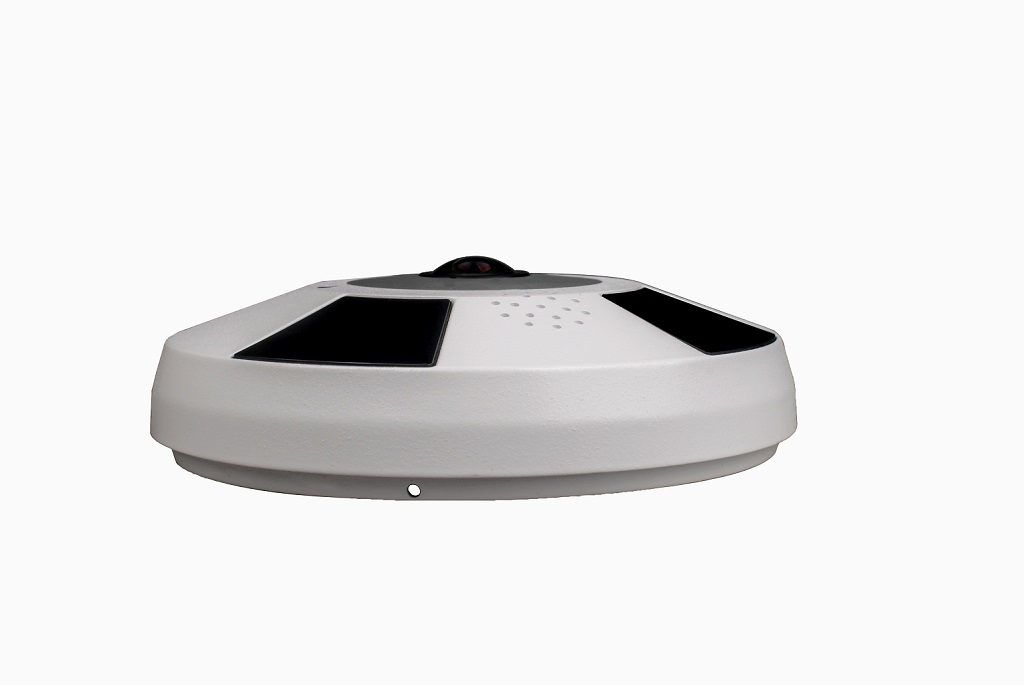

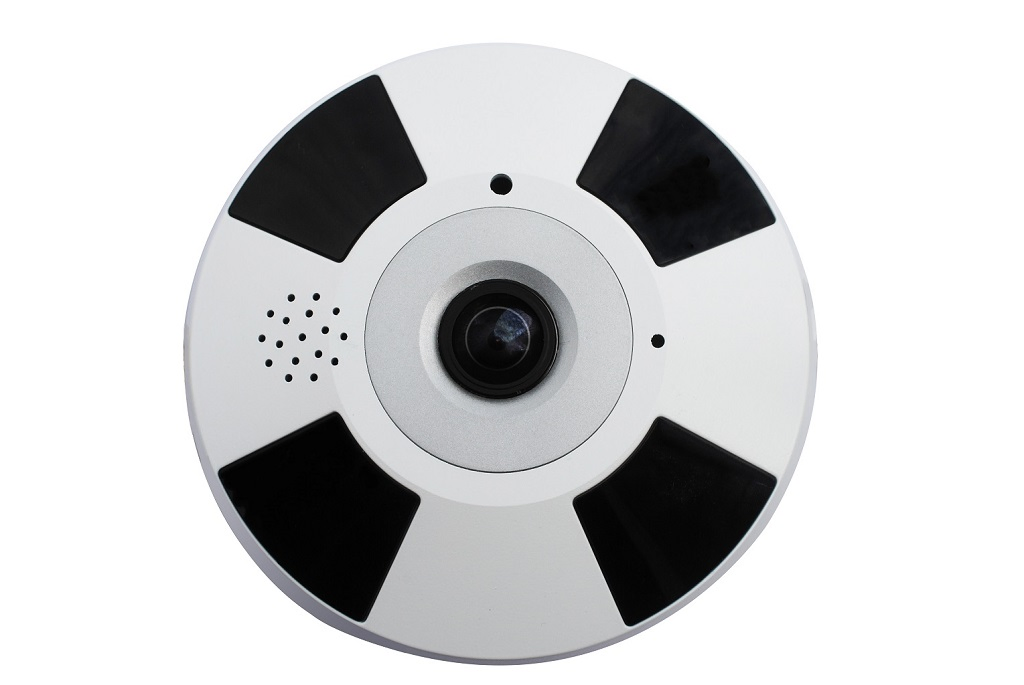

Fsan 12MP 4K Smart IR Fisheye Camera 360 Degree Panoramic IP Poe Camera IP66

1 / 5

Fsan 12MP 4K Smart IR Fisheye Camera 360 Degree Panoramic IP Poe Camera IP66

Customization:	Available
Technology:	Infrared
Style:	Fisheye Camera

Send Inquiry

Product Description

📋 Basic Information

Model NO.

W9131IHBB79A

Type

Wide-Angle

Sensor

CMOS

HDMI Format

12MP

Kind

Fisheye Lens

Certification

CE, FCC, RoHS

Feature

Waterproof, High Definition, Vandal-proof

IR Distance

10-15m

Poe

Optional

Chipset

Hi3519+Imx226

Origin

Made in China

🚀 Key Features

Max resolution 12Mega (4000*3000 @ 20fps)
H.265 high effective compression, saves bandwidth
High efficient infrared LEDs, IR distance 10-15m
Smart IR prevents overexposure at night
ICR infrared filter plate automatic switch
Support Micro SD Card (128G) local storage
3D digital N/R and DWDR support
Bidirectional talkback & Alarm I/O support
Onvif access & HTTPS encryption

⚙️ Technical Specification

Category	Details
CAMERA
Image sensor	1/1.7" 12 Mega Progressive Scan CMOS
Min. illumination	0Lux(IR ON); Color: 0.1Lux, B/W: 0.05Lux
Lens Type	Fisheye lens (M12 Interface)
WDR	DWDR (Off/Low/Middle/High)
AUDIO/VIDEO ENCODING
Video compression	H.265 / H.264
Max. Resolution	4000 * 3000
Multi-Mode	Fisheye, Panorama, PTZ linkage modes supported
Audio Compression	G.711u (64Kbps)
NETWORK & INTERFACE
Access Protocol	ONVIF, RTSP
Safe Mode	HTTPS encryption, AES link, RTSP verification
Alarm I/O	2CH Input / 1CH Output
Power Supply	AV24V/DC12V/POE optional (<15W)

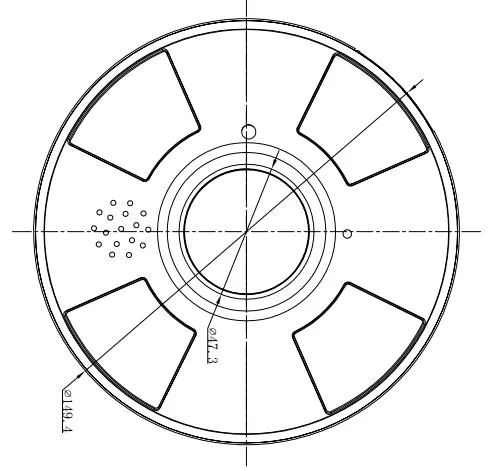

📐 Dimensions

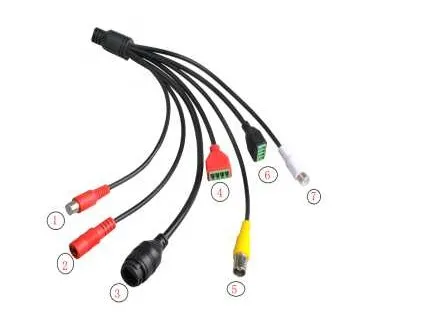

🔌 Interface Details

Port Configuration:
1. Audio input
2. Power supply input
3. Network interface
4. Alarm input/output
5. Analog video output
6. RS485
7. Audio output

🏆 Exhibition & Certifications

🚢 Shipping Information

❓ Frequently Asked Questions

Q1: Do you support sample orders for testing? Yes, we support sample orders for customers to conduct quality tests before placing bulk orders.

Q2: What is the typical lead time for orders? Sample orders generally require 3-5 days. For bulk orders, the lead time can be negotiated based on the quantity.

Q3: Is there a Minimum Order Quantity (MOQ) limit? There is no MOQ limit for standard sample orders. However, customized logos or packaging for bulk orders will have specific MOQ requirements.

Q4: How are the products usually shipped? Samples are typically shipped via DHL, FedEx, UPS, or TNT. Bulk orders are shipped via air, sea, or train through customer-appointed forwarders.

Q5: What is the warranty period for this camera? We provide a 2-year warranty for our products and offer comprehensive online technical support.

Q6: Do you provide OEM and ODM services? Yes, as a professional manufacturer, we support customized logo printing, customized packaging, and GUI language customization.
