Product Description

Basic Information

Model NO.
HDS-1014HDTPAVM805Z4
Applicable Model
Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester
Shell Material
Aluminium
Probe Number
4-8
Display Type
Reverse Image
Interface
Ava Connector
Function
Night Vision, Waterproof, Dustproof, Shockproof
Definition
Ahd
Waterproof Grade
IP96K
HS Code
8502400000

Product Description

360 Around View Monitor (AVM) Integrated System

  • Overview: The system captures images using multiple ultra-wide-angle cameras. Special algorithms correct distortion and stitch the images to form a panoramic view.
  • Shell Material: Aluminum alloy is beneficial for heat dissipation.
  • Full Bonding Process: Space-free fully bonded structure to eliminate specular reflection and ensure clear image transparency.
  • Intelligent Stitching: Automatic and manual rapid stitching through GPS speed sensor and steering signals.
  • Detection & Warning: 360° blind-spot-free collision prevention and safety distance warnings.
  • Automatic Switching: Automatically switches to warning screens when speed is below 25 km/h.
  • DVR Recording: Supports real-time recording, loop recording, and playback via TF card.
  • Display: 10.1-inch IPS screen, 1024x600 resolution, 600 Cd/M2 brightness with auto-adjustment.

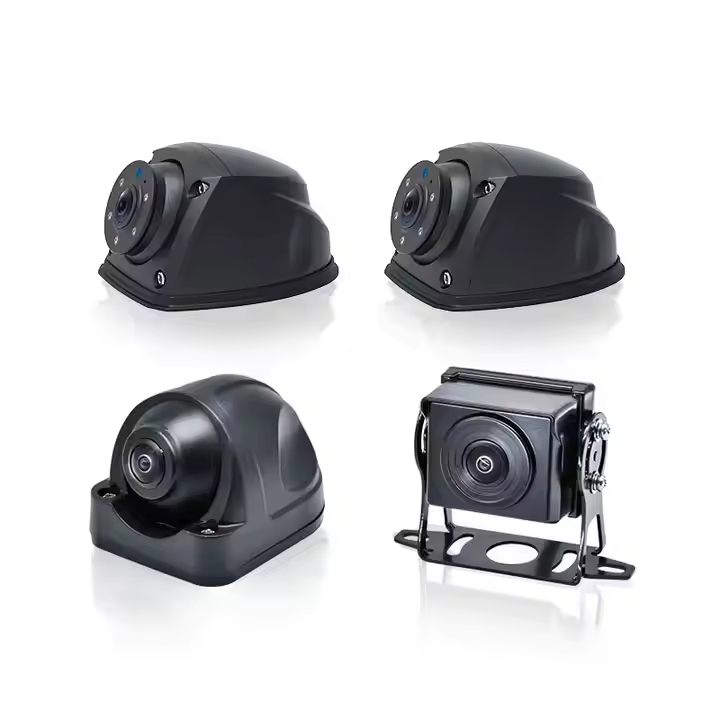

  • AHD Panoramic Cameras: 210° ultra-wide-angle, 2 million HD pixels, IP69K waterproof rating.

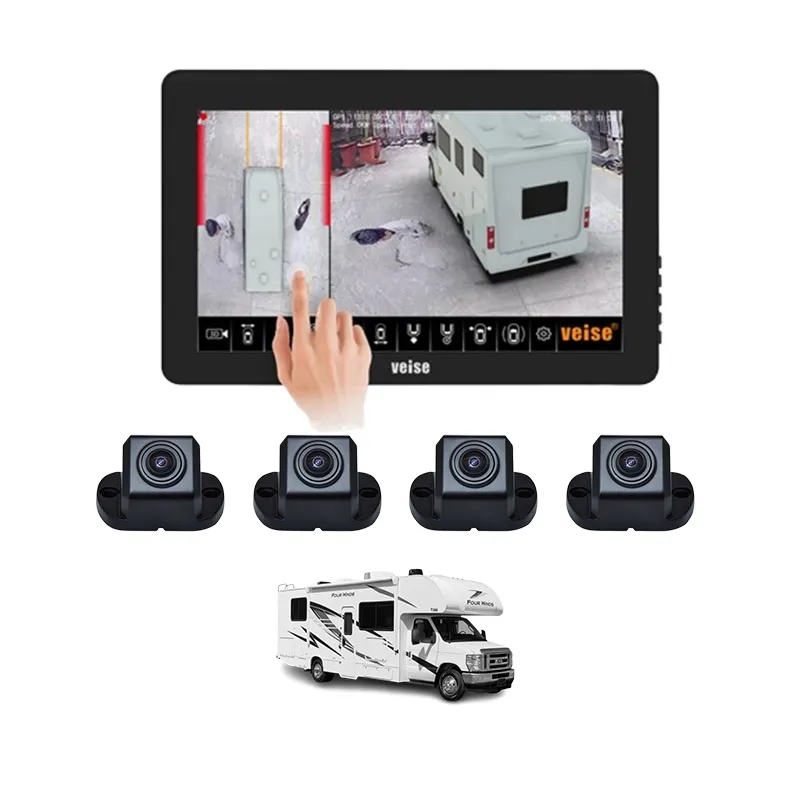

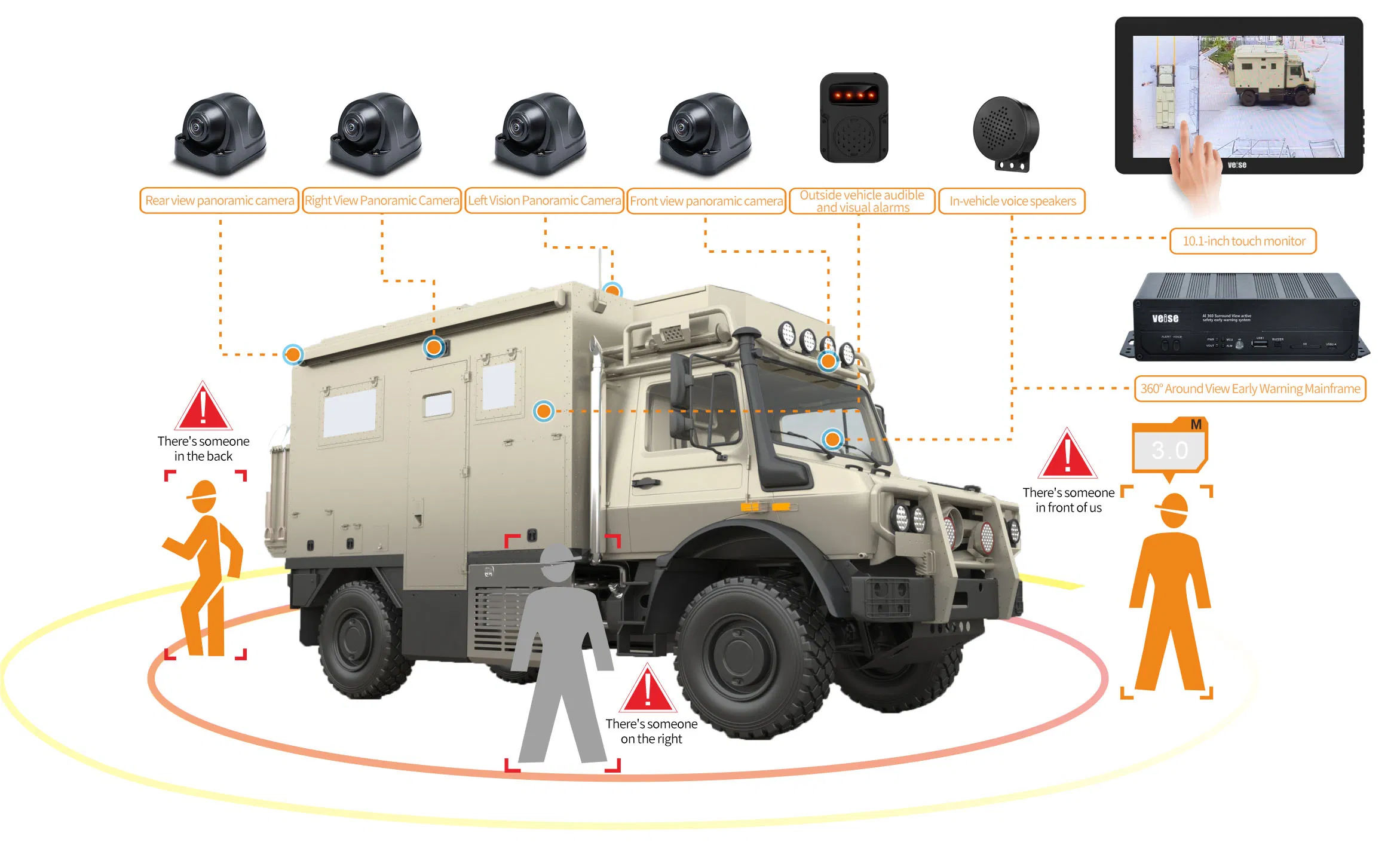

360 View System Overview

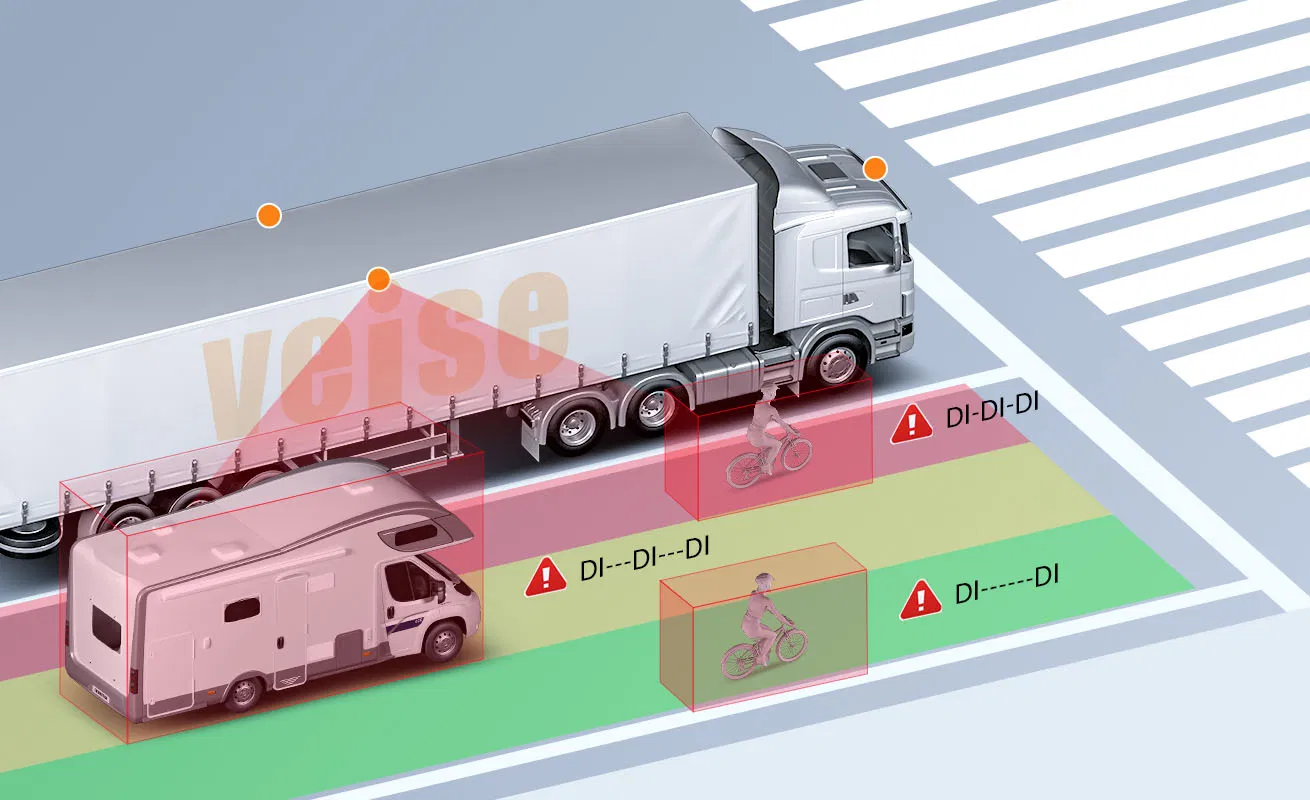

360 View System Detail

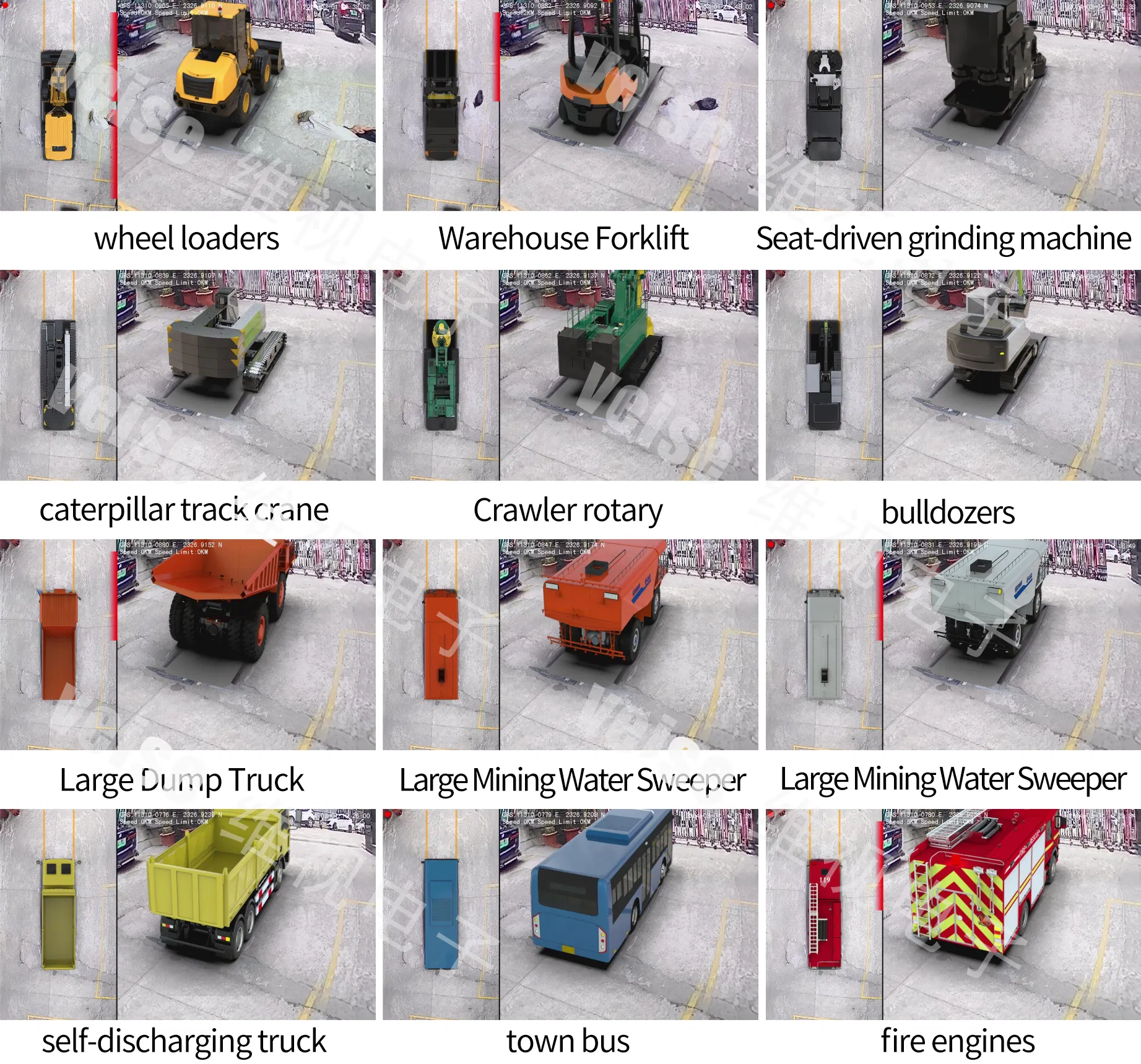

360 View System Installation

Specifications

System Name10.1-inch 360 Around View Monitor Integrated System
Monitor ModelMHD-3D1014TP
Operating SystemLINUX
Resolution & Size10.1 inches, 1024 x 600
Brightness600 (Cd/M2) Auto-Adjust
Video Input4-channel AHD panoramic + 4-channel AHD monitoring
AI Vision WarningBuilt-in AI algorithm for pedestrian and vehicle recognition
Recording Resolution1080P (H265 Format)
Operating VoltageDC 12-36V
Protection LevelMonitor IP65 / Camera IP68/IP69K
Operating Temperature-20°C to +70°C

Visual Showcase

Factory Overview
Production Line
Testing Center
Certification
Product Display
Storage

Frequently Asked Questions

What vehicles is this 360 AVM system compatible with?
The system is designed for a wide range of vehicles, including trucks, SUVs, agricultural machinery, forklifts, and RVs, supporting a wide voltage input of DC 12-36V.
Does the system support recording?
Yes, it supports 4-channel real-time recording in 1080P resolution using H.265 compression, with storage support for TF cards up to 1TB.
Is the camera waterproof for heavy-duty use?
Absolutely. The cameras feature an IP68/IP69K rating, making them highly resistant to high-pressure water jets and extreme weather conditions.
How does the AI Vision Warning function work?
The system uses built-in AI algorithms to detect pedestrians and vehicles in the 360° surroundings, providing real-time audio-visual alerts to the driver.
Can I see the display clearly in bright sunlight?
Yes, the 10.1-inch IPS monitor has a brightness of 600 Cd/M2 and automatically adjusts based on ambient light to ensure visibility during both day and night.
What is the viewing angle of the cameras?
The panoramic cameras provide a 210° ultra-wide horizontal angle and 126° vertical angle to ensure no blind spots around the vehicle.
