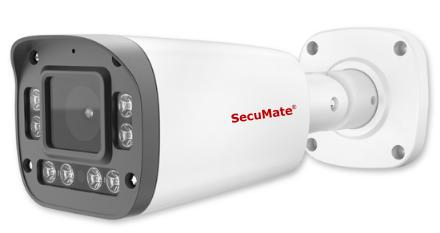

Basic Information
Type
H.265 Human Detection
Sensor
1/2.7" 2 Megapixel CMOS
Lens Option
4mm/6mm/8mm /2.7-13.5mm Motorized
Certification
CE, FCC, RoHS, EMI/EMC
Control
VMS, APP, IE, Safari, Firefox
Protection
IP67 Waterproof
Key Features
👁️
2.0MP Full HD
1920x1080 resolution for crystal clear imagery.
🌙
Long-range IR
Up to 50m infrared distance for superior night vision.
👤
Human Detection
Advanced H.265 encoding with humanoid analysis.
🛡️
IP67 Rated
Fully weatherproof for outdoor surveillance.
Technical Specifications
| CAMERA |
| Image Sensor | 1/2.7" 2 Megapixels CMOS |
| Min. illumination | 0Lux/F1.4 (IR on) |
| IR Distance | 30-40m / 50m Optional |
| Lens | 3.6mm/6mm/2.7-13.5mm motorized lens |
| WDR | DWDR (Off/Low/Middle/High) |
| Noise Reduction | 3DNR |
| ENCODING |
| Compression | H.265 / H.264 / MJPEG |
| Max Resolution | 1920 x 1080 |
| Video Bit rate | 16kbps ~ 8000kbps |
| NETWORK & INTELLIGENCE |
| Protocols | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP |
| Intelligent Analysis | Target Counting, Area Detection, Line Crossing |
| Mobile Surveillance | Support Apple, Android APP |
| Protection | IP67, Exception Detection |

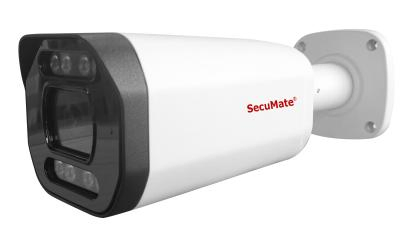

Product Presentation
Frequently Asked Questions
What is the maximum night vision range of this camera?
This camera features powerful infrared LEDs providing an IR distance of up to 40-50 meters, ensuring clear visibility even in total darkness.
Does the camera support Power over Ethernet (PoE)?
Yes, the camera supports both DC12V power supply and PoE (Power over Ethernet), allowing for easier installation with a single cable for both data and power.
Is this camera suitable for extreme outdoor weather?
Absolutely. It is IP67-rated, meaning it is dust-tight and protected against powerful water jets or immersion, making it ideal for harsh outdoor environments.
What intelligent detection features are included?
The camera includes built-in H.265 Human Detection, Motion Detection, Target Counting, Area Detection, and Line Crossing analysis.
Can I view the live feed on my mobile phone?
Yes, it supports remote surveillance via P2P apps on both Apple and Android devices, as well as web browsers like IE, Chrome, and Safari.
What lens options are available?
You can choose between fixed lenses (3.6mm, 4mm, 6mm, 8mm) or a 2.7-13.5mm motorized lens depending on your specific field-of-view requirements.
