12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua
12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua
12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua
12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua
12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua
1 / 5
12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua
12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua
12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua
12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua
12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua

12MP 8MP 4K Starlight Smart Ai Fisheye Camera 360 Panoramic IP Camera 360 Degree Fisheye Camera NVR PTZ Hikvision Dahua

Customization: Available
Technology: WDR
Style: Fisheye Camera
Send Inquiry

Product Description

📷 Basic Information
Model:CT-MD12RHBB79
Type:IP Camera
Sensor:CMOS
Lens:Autofocus Fisheye
Resolution:12MP Ultra HD
Effective Distance:≧30m
💎 Product Highlights

12MP Starlight Smart IR Infrared Night Vision 360 Degree Fisheye Home Security System Outdoor IP Poe Network HD Surveillance CCTV Camera

12MP Fisheye Camera
⚙ Core Features
✅Max resolution 12Mega (4000*3000 @ 20fps)
✅H.265 high effective compression, saves bandwidth
✅High efficient infrared LEDs, IR distance 10-15m
✅Smart IR to prevent overexposure at night
✅ICR infrared filter automatic switch for D/N monitoring
✅Support PoE & Micro SD Card (128G) local storage
✅3D Digital N/R and DWDR support
✅Bidirectional talkback & 2CH Alarm input
✅Support ONVIF, HTTPS encryption & remote upgrade
📝 Technical Specifications
Category Details
CAMERA
Image Sensor1/1.7" 12 Mega Progressive Scan CMOS
Min. Illumination0Lux(IR ON); Color: 0.1Lux/F1.4, B/W:0.05Lux/F1.4
Electronic ShutterAuto/ Manual(1/25~1/10000), FLK
Lens InterfaceM12 Fisheye Lens
Day/NightICR switch, auto/color/B/W/ext
AUDIO/VIDEO ENCODING
Video CompressionH.265/H.264 Main Profile
Max. Resolution4000 * 3000
Encoding ModesFisheye, Panorama, Fisheye+3PTZ, Fisheye+4PTZ, Fisheye+Panorama+3PTZ
Video Bit Rate32kbps ~ 16Mbps (CBR/VBR)
NETWORK
ProtocolsTCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP
CompatibilityONVIF, RTSP, IE, Chrome, Firefox, Safari
Mobile SurveillanceSupport Apple, Android
🖺 Dimensions & Visuals

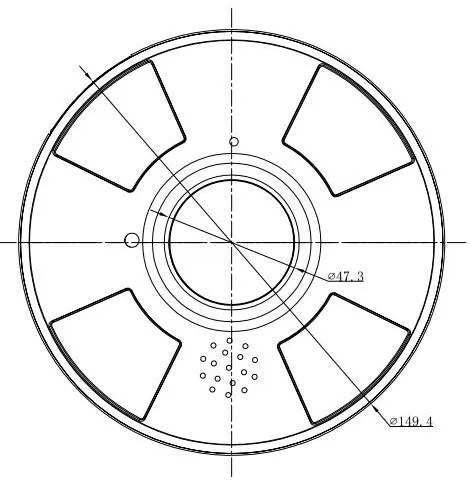

Dimensions 1

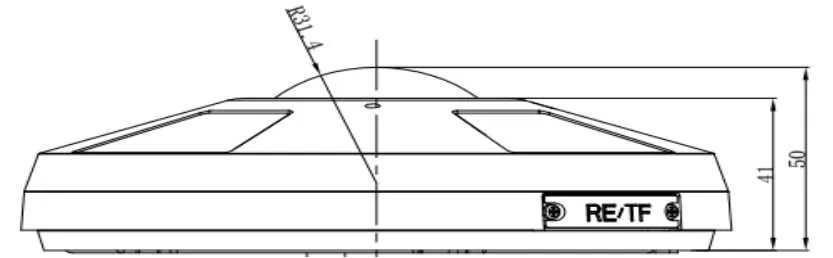

Dimensions 2
📜 Interface Definition

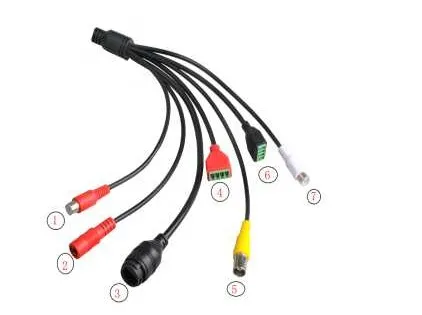

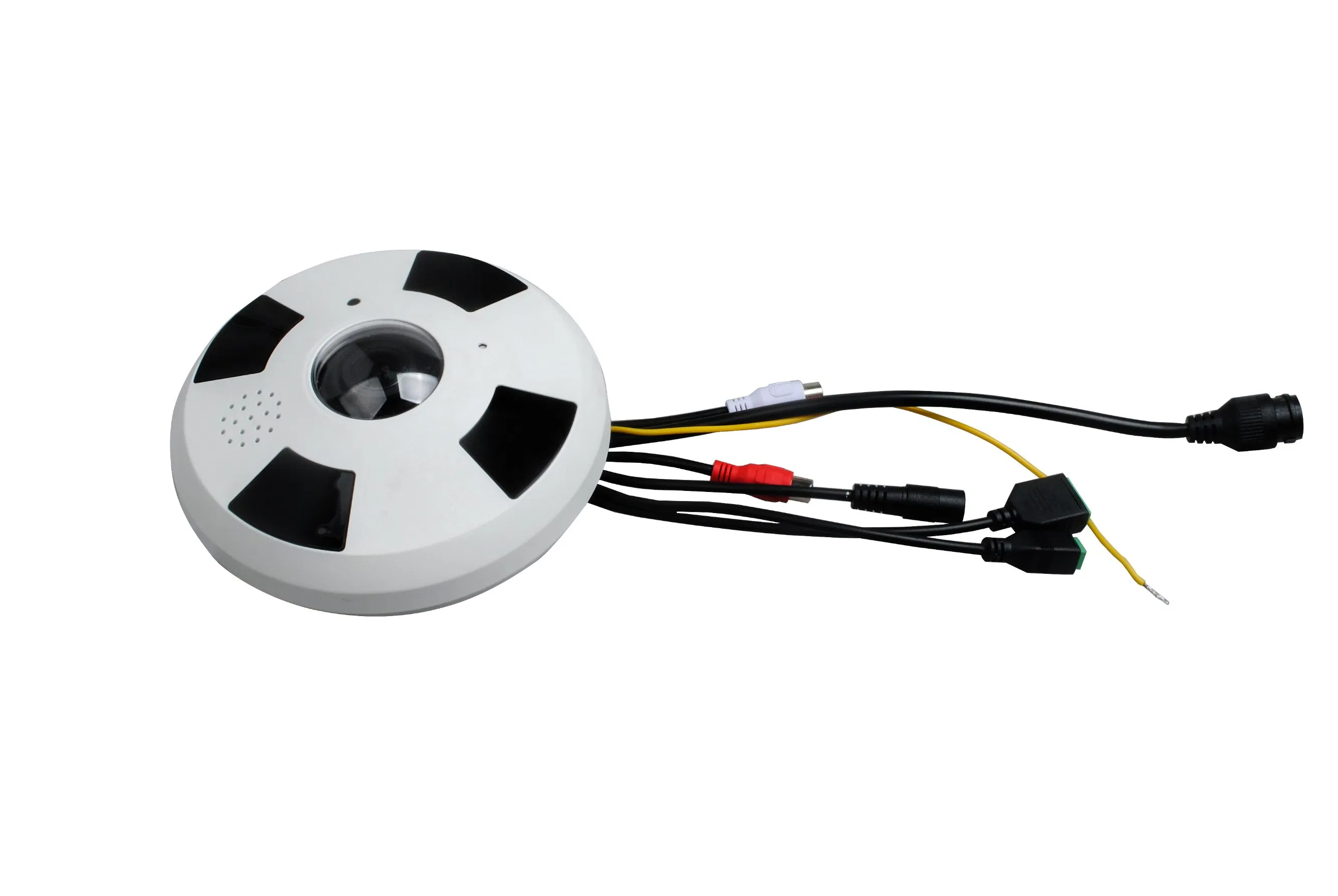

Interface Diagram
  1. Audio input
  2. Power supply input
  3. Network interface (RJ45)
  4. Alarm input/output
  5. Analog video output
  6. RS485
  7. Audio output
Installation view

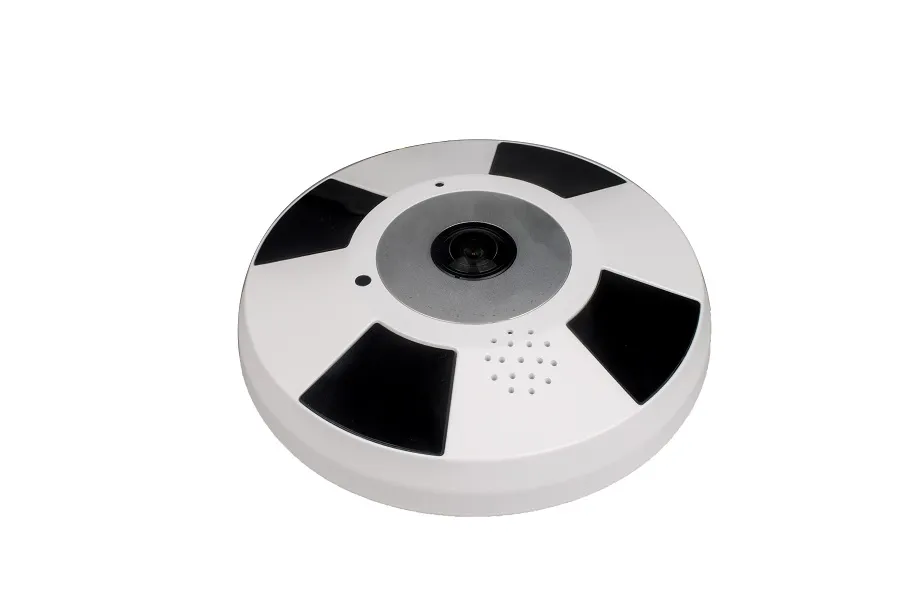

Application view

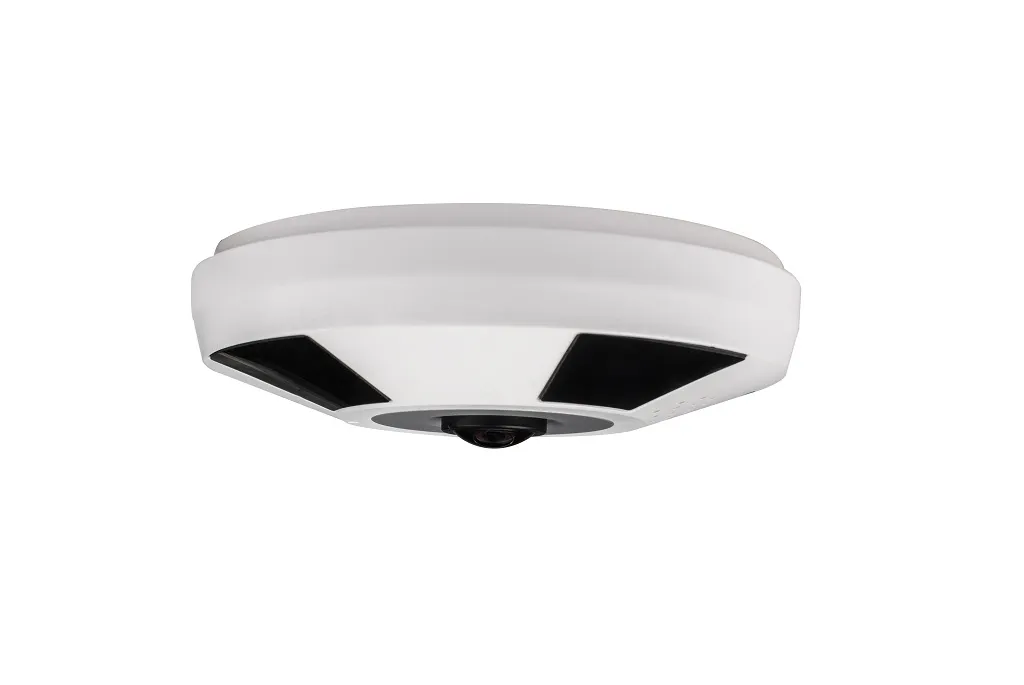

Detail view 1

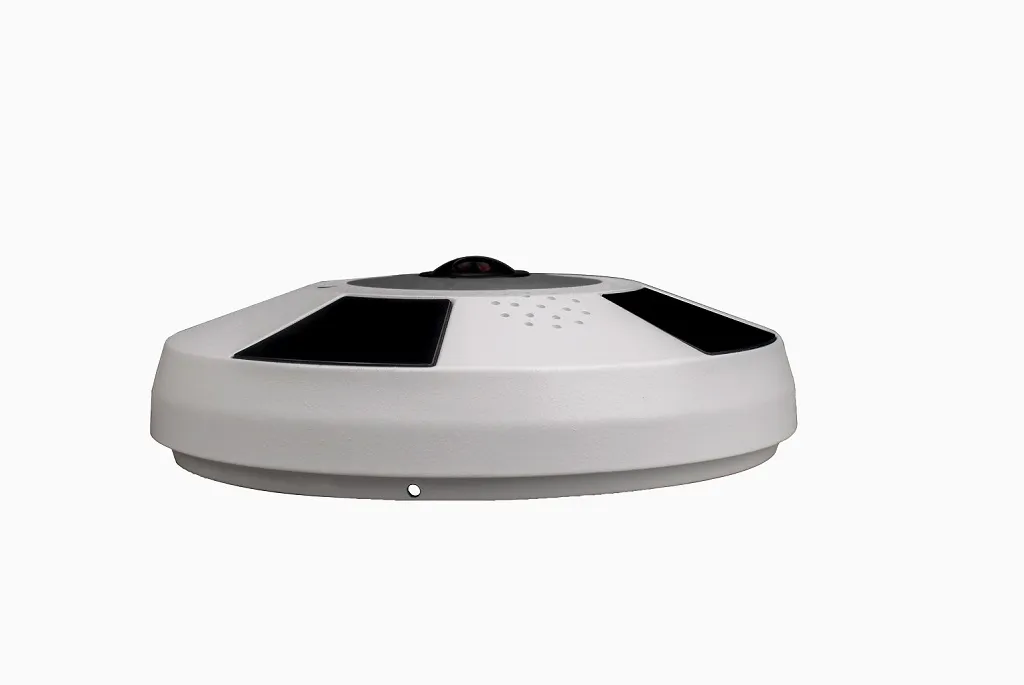

Detail view 2
❓ Frequently Asked Questions
1. What is the maximum resolution of this panoramic camera?
The camera features a 12-Megapixel (4000*3000) ultra-high-definition resolution at 20fps, providing exceptionally clear images for large area monitoring.
2. Does it support night vision in total darkness?
Yes, it is equipped with high-efficiency infrared LEDs and Smart IR technology, offering a night vision range of 10 to 15 meters even in 0 Lux conditions.
3. What storage options are supported for video recording?
The camera supports local storage via a Micro SD card slot, compatible with cards up to 128GB (SDHC/SDXC). It also supports FTP upload and NVR recording via ONVIF.
4. Can I view the camera feed on my smartphone?
Absolutely. The system supports mobile surveillance for both Apple (iOS) and Android devices, allowing for remote real-time monitoring and event alerts.
5. What are the different viewing modes of the 360-degree lens?
The camera supports multiple intelligent display modes, including original Fisheye, Panoramic, Fisheye + 3PTZ, and Fisheye + Panorama + 3PTZ to eliminate blind spots.
6. Is Power over Ethernet (PoE) supported?
Yes, PoE is available as an optional feature, allowing both power and data to be transmitted through a single network cable for easier installation.
